Rebuilding the South Reader Outlet

How a $1.5 million project on the Saskatchewan River Delta is helping wildlife, fish and communities near The Pas

February 05, 2019

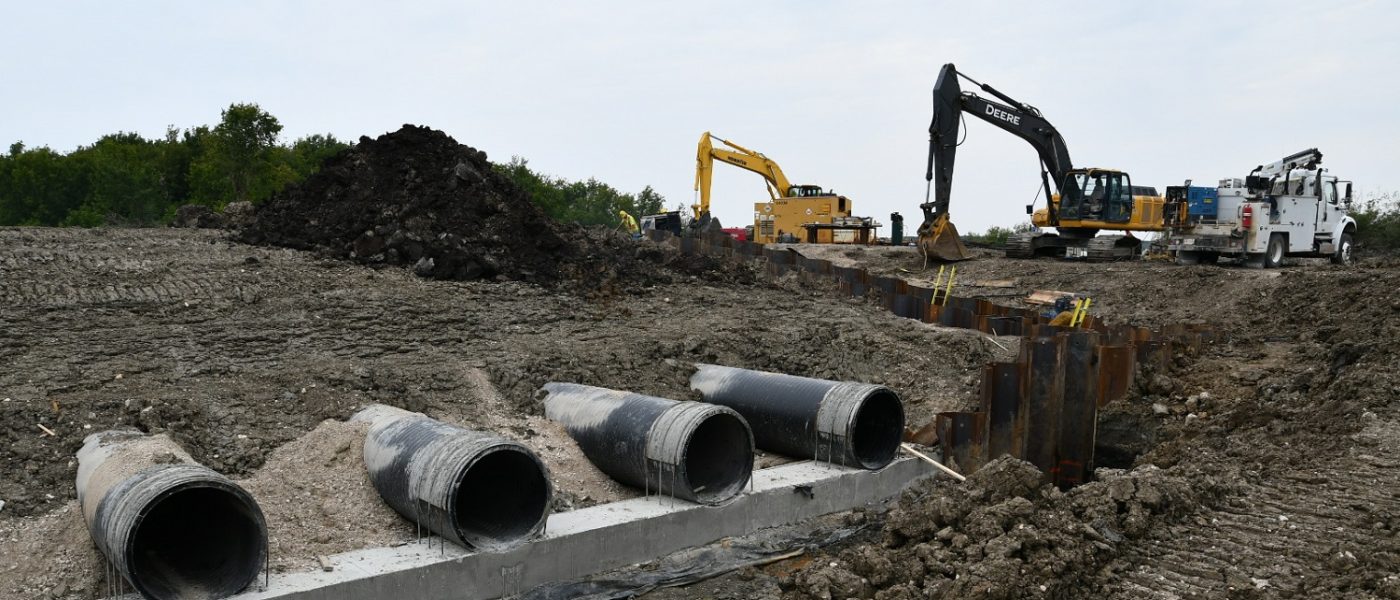

In summer of 2018, DUC visited the construction site for the South Reader outlet dam, a rebuild of a water control structure that will protect world-renowned waterfowl habitat. The project, now complete, will help to maintain 260,000 acres (105,218 hectares) of habitat—an area more than twice the size of Winnipeg.
In summer of 2018, DUC visited the construction site for the South Reader outlet dam, a rebuild of a water control structure that will protect world-renowned waterfowl habitat. The project, now complete, will help to maintain 260,000 acres (105,218 hectares) of habitat—an area more than twice the size of Winnipeg. © DUC

So far, so good.

It’s mid-August and the fifth week of construction for the new South Reader Outlet dam near The Pas, the most complex and expensive project in recent years for Ducks Unlimited Canada in Manitoba.

The weather has been fair, the contractors have pushed hard through 12-hour days, and there have been no major problems.

DUC engineer Parsa Aminian is confident the work will be done by mid-September.

“Most of the difficult work is behind us with no issues,” Aminian says.

That’s good news for a big DUC project that has even bigger implications for an expanse of world-renowned waterfowl habitat.

The $1.5 million rebuild of the dam will help maintain 260,000 acres (105,218 hectares) of wildlife habitat in a river delta known for its fishing, hunting, trapping and tourism.

“It’s definitely not run of the mill,” Aminian says.

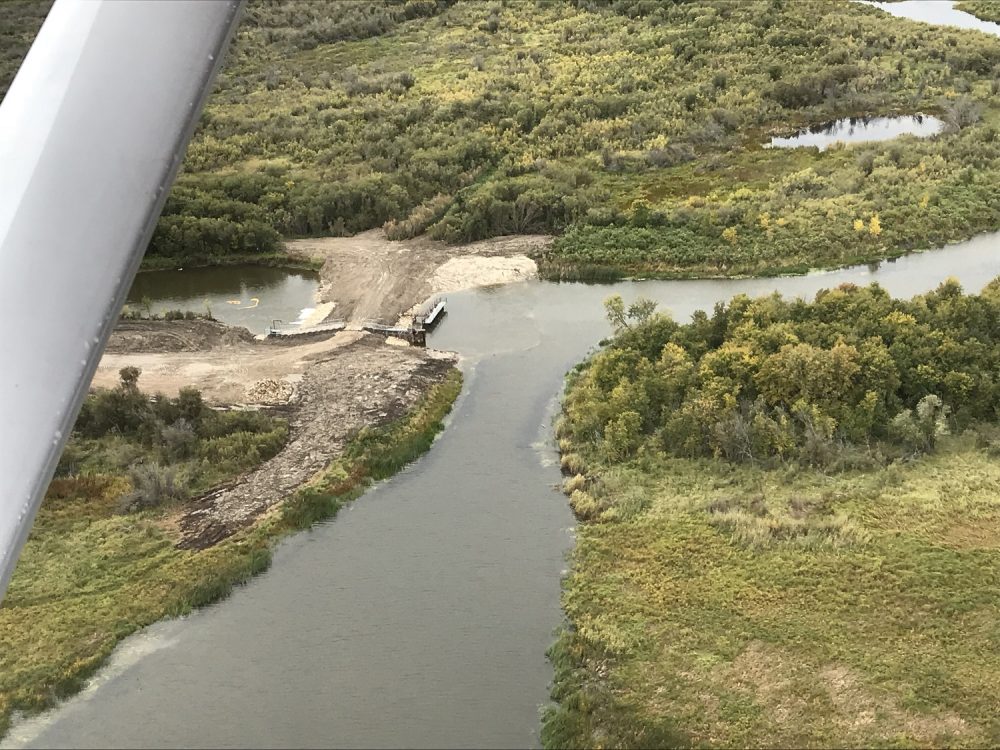

Aerial photo of the South Reader Outlet dam near The Pas.
Aerial photo of the South Reader Outlet dam near The Pas. © DUC

Conserving waterfowl habitat in the Saskatchewan River Delta

Large DUC wetland projects are usually made up of smaller structures that are linked, whereas the South Reader Control Outlet is a single structure.

The new water control will replace one that spans Whitefish Creek in the boreal forest, about 10 kilometres northwest of The Pas on Crown land, and controls water that flows from Reader Lake to the Saskatchewan River.

The Saskatchewan River Delta is one of the largest freshwater deltas in the word, and internationally recognized as important waterfowl habitat.

Rebuilding the control will help conserve that important habitat, and protect the economy and culture of indigenous people who rely on the trapping, hunting and tourism that the delta provides.

Half of the old dam was built in 1958, and the second half in 1976. Water flow through its eight-foot-diametre pipes was controlled by stop logs placed at their openings.

Under agreements with Manitoba Conservation and Water Stewardship, DUC used the dam to maintain water levels in shallow marsh wetland for waterfowl and other wildlife such as moose.

South Reader is the only outlet for a series of eight wetlands known as the Reader-Root Complex. They and the surrounding habitat were protected, in part, to offset habitat losses in the area due to hydro-electric development.

After 60 years, however, the steel pipes of the old control were badly corroded. Replacing it was critical to maintain historic water levels.

The control stands beside the Opaskwayak Cree Nation (OCN) and DUC kept residents there up to date on its plans for the new structure. Once complete, the dam will provide a safe way to cross the creek and access traditional territory.

Long term benefits for fish and wildlife

Partly funded by Wildlife Habitat Canada, the direct and material costs for the rebuild total more than $1.5 million. In addition, DUC has budgeted for long term operating costs.

The new dam, which like the old structure will control the flow of water using stop logs, is an upgrade that’s more resilient than the one it replaces.

“The new one is much more efficient in design,” Aminian says.

The old dam’s four eight-foot-diametre pipes will be replaced by four high-density polyethylene pipes that are narrower at four feet in diametre, but smoother and more efficient. The new 30-metre-long pipes will allow the same rate of water flow as the old ones. They’re also thicker and won’t rust, like the old corrugated steel pipes did.

Perhaps one of the new dam’s most exciting features is a fish ladder that wasn’t part of the old structure. Fish will be able to swim upstream past the dam in stages: at each level the structure creates an eddy where they can rest before pushing to the next step.

DUC has built fish ladders in other parts of the country before, but they’re still rare for the organization.

By mid-September the project at the South Reader outlet dam was complete.
By mid-September the project at the South Reader outlet dam was complete. © DUC

Managing the massive undertaking

The complexity of the project demands a contractor that can quickly handle a variety of challenges, such as welding and moving earth near water and aquatic species.

Heavy equipment was used to shift 400,000 cubic metres earth and more than 90,000 kilograms of steel, but the job also demands precision. For the fish ladder, for example, excavators lowered heavy steel plates that had to be welded in place 25 cm apart, plus or minus half a centimetre. The contract workers have been accurate to within two millimetres.

“They’ve been bang on for everything, and moving 874 kilos with precision,” Aminian says.

The project foreman has some experience working with DUC. Dwayne Sigfusson figures he’s worked on 30 or more projects for DUC, mostly while working for his grandfather and father’s company, Sigfusson Northern.

The South Reader Outlet control is the first project for his son’s company, BT&T Construction. Road construction, sewer and water installation, excavation, lagoon and dike building – the company has handled all of that. This is its first fish ladder though.

“It’s an interesting project to be a part of,” Sigfusson says, explaining the challenge of installing the fish ladder while ensuring the project isn’t flooded. “There’s a fair bit of thinking about how you’re going to build it.”

“It’s not like an Ikea kind of furniture, where you get the parts and put it together,” Aminian says.

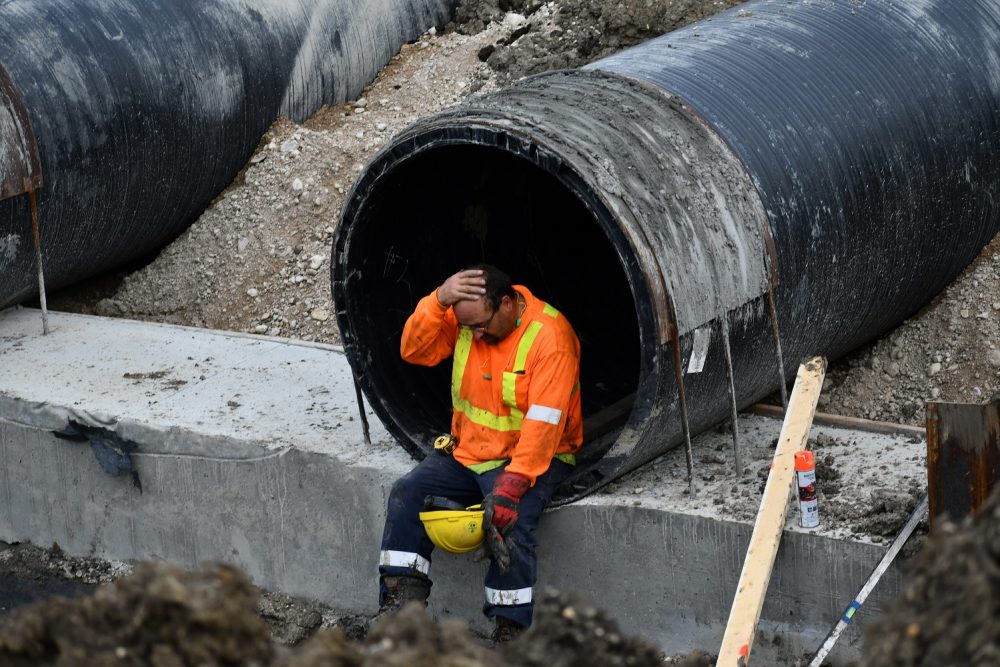

The South Reader outlet dam rebuild was a massive and complex undertaking.
The South Reader outlet dam rebuild was a massive and complex undertaking. © DUC

Completing the new South Reader Outlet dam

As of mid-August, there was still a lot of work to do – the fishway had to be lined with gravel, the two remaining old pipes had to be removed and that section of the dam rebuilt, rocks put in place to prevent the dam from eroding, and walkways and a chain-link fence put in place for safety.

But, as expected, by mid-September the project was complete, on time and on budget, much to the relief of Aminian who, after successfully supervising his first project from start to finish, could finally “take a comfortable breath of air.”

The dam is working properly and holding the adjacent marsh to the correct level.

“I think what they’ve built will last quite some time and serve our needs well,” Aminian said.

The South Reader Outlet Control project was made possible with a funding contribution by Wildlife Habitat Canada.


Who benefits from the project?

  • Manitoba Sustainable Development—Conservation of 116,727 acres of waterfowl and wildlife habitat within the designated Saskeram Wildlife Management Area (Crown Lands)
  • Opaskwayak Cree Nation (OCN)—Conservation of 116,727 acres of habitat within OCN Traditional Territory.
  • Citizens of the Rural Municipality of Kelsey and Town of The Pas—Conservation of 116,727 acres of habitat adjacent to RM Boundary which provides water filtration, carbon sequestration, and drought/flood attenuation in addition to recreational, economical and tourism opportunities.
  • Waterfowl Hunters—Conservation of 116,727 acres of wetland and associated upland which is publically accessible waterfowl habitat.
